FPLC V2+LM+LOCK

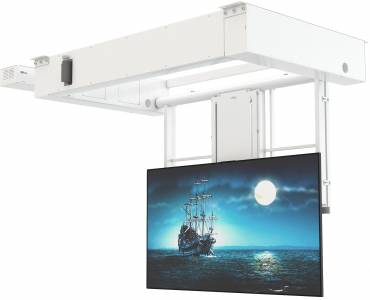

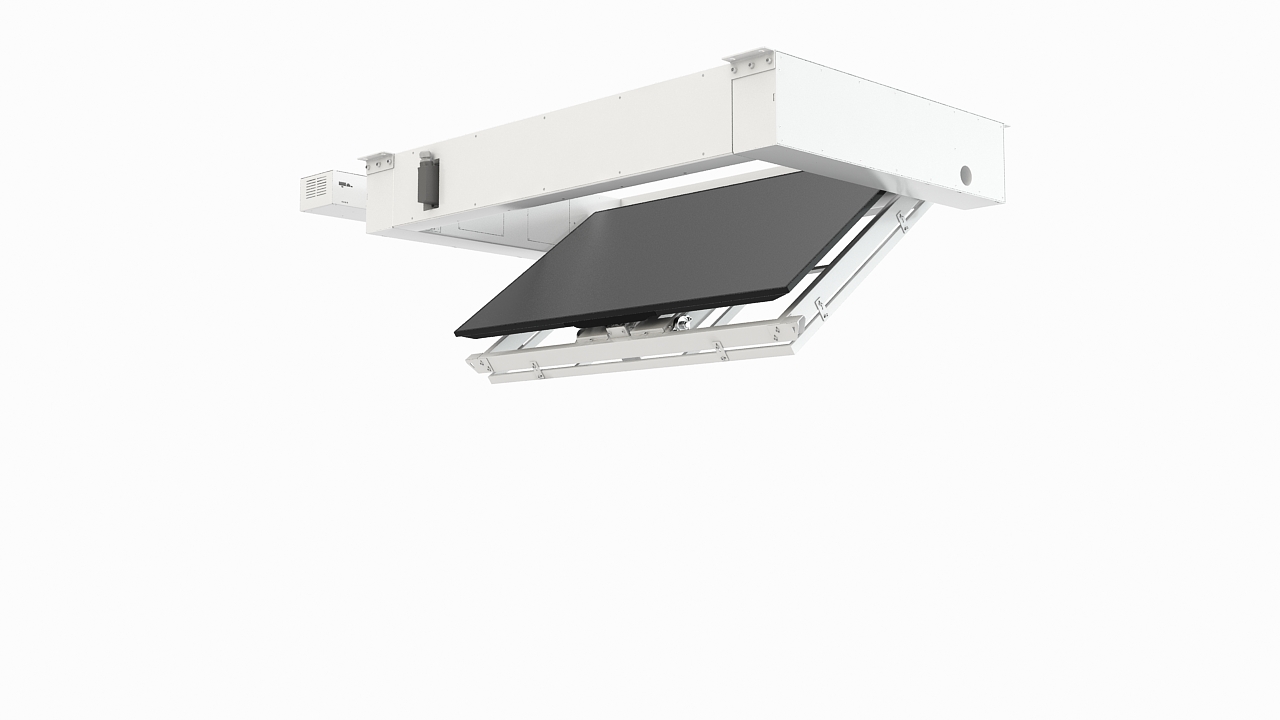

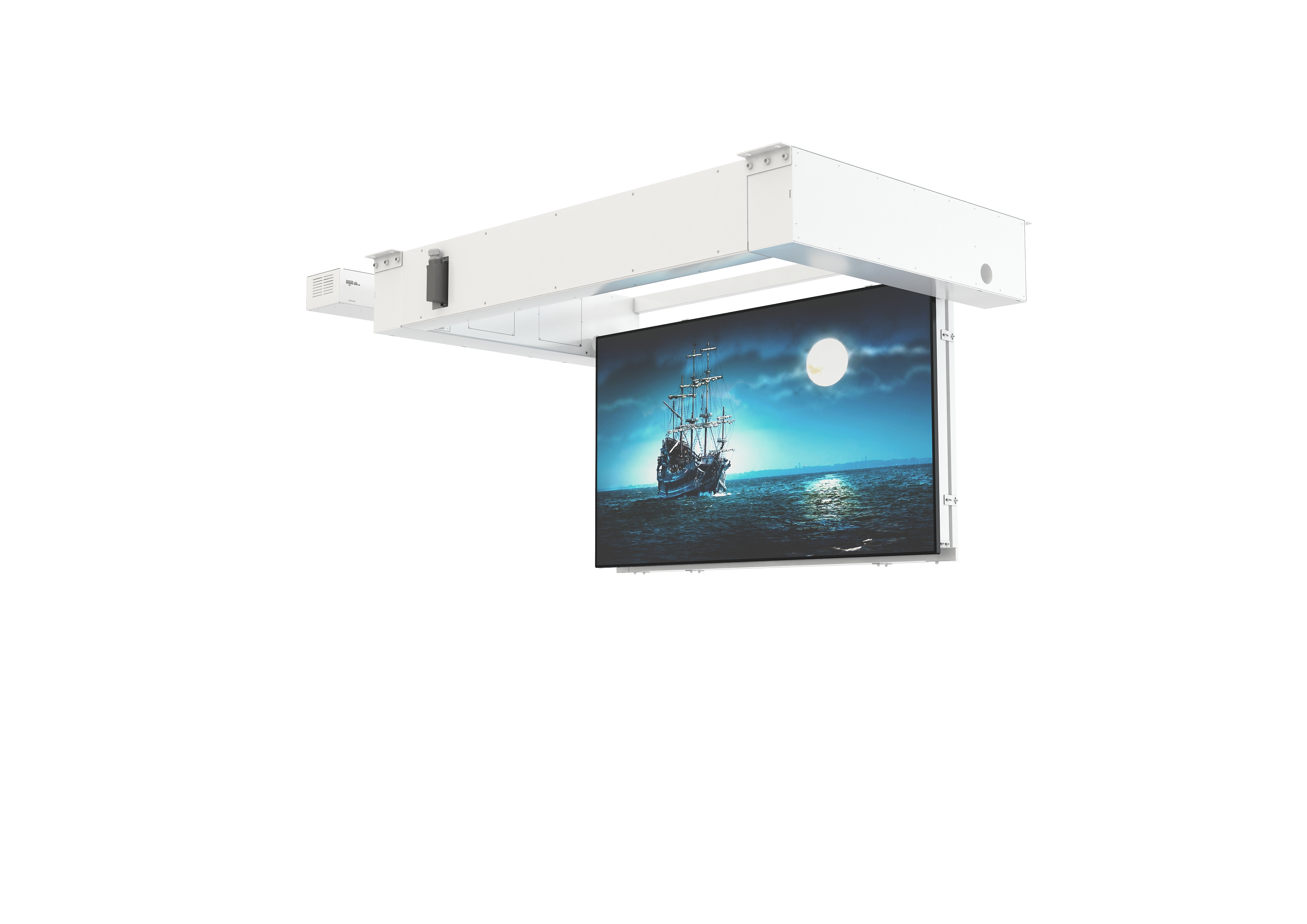

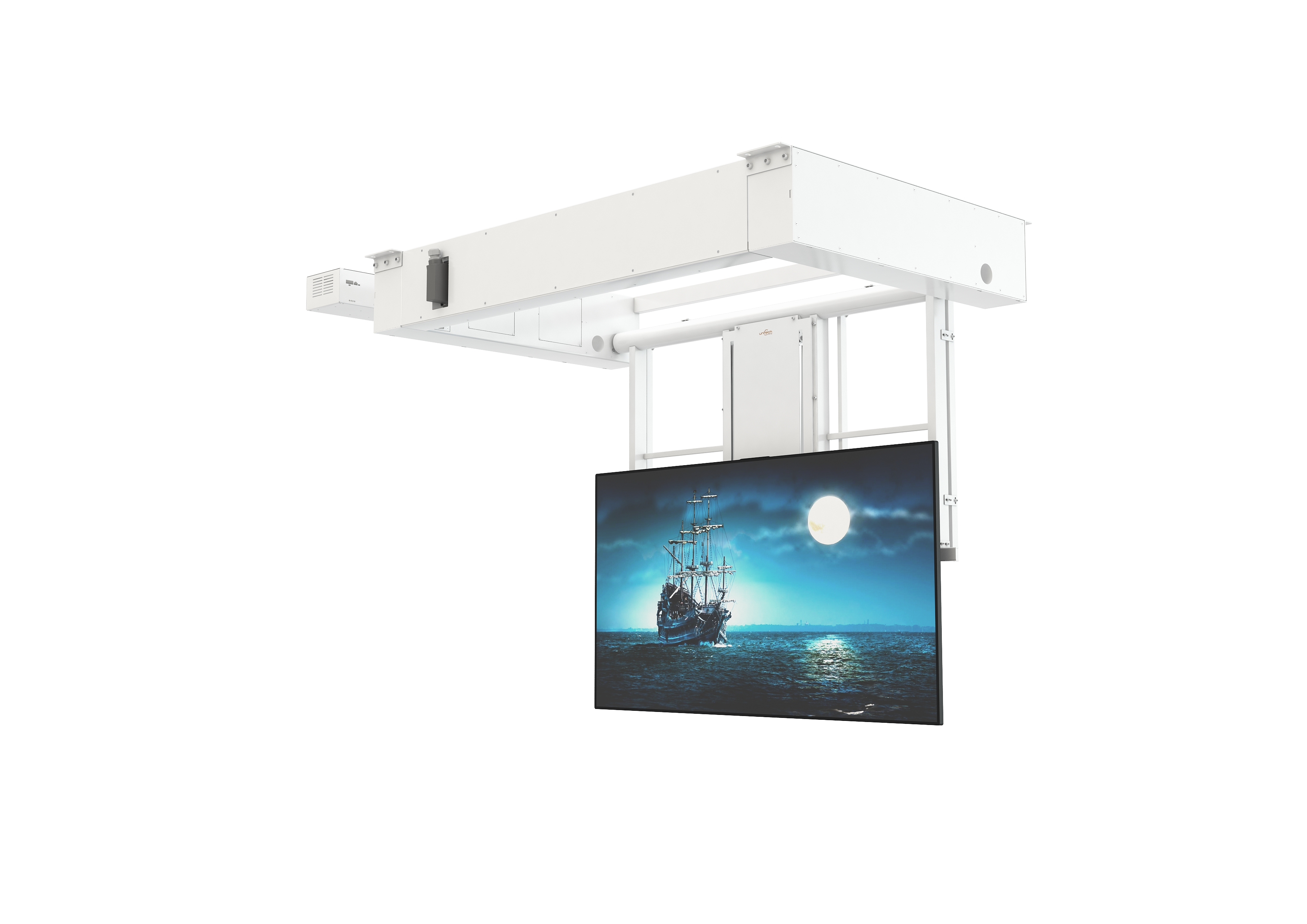

FPLC V2+LM series of TV ceiling lift mechanisms offers TV vertical descent after hinge swiveling motion, for applications with increased floor-ceiling distance. Maximum safety is achieved in closed position with the electric safety locking system. Its silent operation and smooth motion make this series of TV lifts an elegant and reliable solution!
Model: FPLC V2-42-50+LM+LOCK
- Maximum flat panel dimensions (WxHxD) ≤ 1280x755x90mm
- Maximum load (flat panel+ceiling cover): 45kg
- Lift dimensions (WxD): 1630x250x1153mm, excluding control box
- Lift dimensions (H): 220mm for TVs with depth up to 60mm or 250mm for TVs with depth up to 90mm deep
- Swiveling angle: 90degrees
- Vertical lowering distance up to : 435mm
- Safety locking system in closed position for maximum safety in application
- Mounting flat panel holes pattern up to 600x400mm
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF remote control, RS 232 ports
Model: FPLC V2-52-60+LM+LOCK
- Maximum flat panel dimensions (WxHxD) ≤ 1480x900x90mm
- Maximum load (flat panel+ceiling cover): 45kg
- Lift dimensions (WxD): 1795x1300mm, excluding control box
- Lift dimensions (H): 220mm for TVs with depth up to 60mm or 250mm for TVs with depth up to 90mm deep
- Swiveling angle: 90degrees
- Vertical lowering distance up to : 580mm
- Safety locking system in closed position for maximum safety in application
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF remote control, RS 232 ports
It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
Model: FPLC V2-42-50+LM+LOCK
- Maximum flat panel dimensions (WxHxD) ≤ 1280x755x90mm
- Maximum load (flat panel+ceiling cover): 45kg
- Lift dimensions (WxD): 1630x1153mm, excluding control box
- Lift dimensions (H): 220mm for TVs with depth up to 60mm or 250mm for TVs with depth up to 90mm deep
- Swiveling angle: 90degrees
- Vertical lowering distance up to : 435mm
- Safety locking system in closed position for maximum safety in application
- Mounting flat panel holes pattern up to 600x400mm
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF remote control, RS 232 ports
Model: FPLC V2-52-60+LM+LOCK
- Maximum flat panel dimensions (WxHxD) ≤ 1480x900x90mm
- Maximum load (flat panel+ceiling cover): 45kg
- Lift dimensions (WxD): 1795x1300mm, excluding control box
- Lift dimensions (H): 220mm for TVs with depth up to 60mm or 250mm for TVs with depth up to 90mm deep
- Swiveling angle: 90degrees
- Vertical lowering distance up to : 580mm
- Safety locking system in closed position for maximum safety in application
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF remote control, RS 232 ports
It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
